WW-C03 · Aluminum commercial wheels

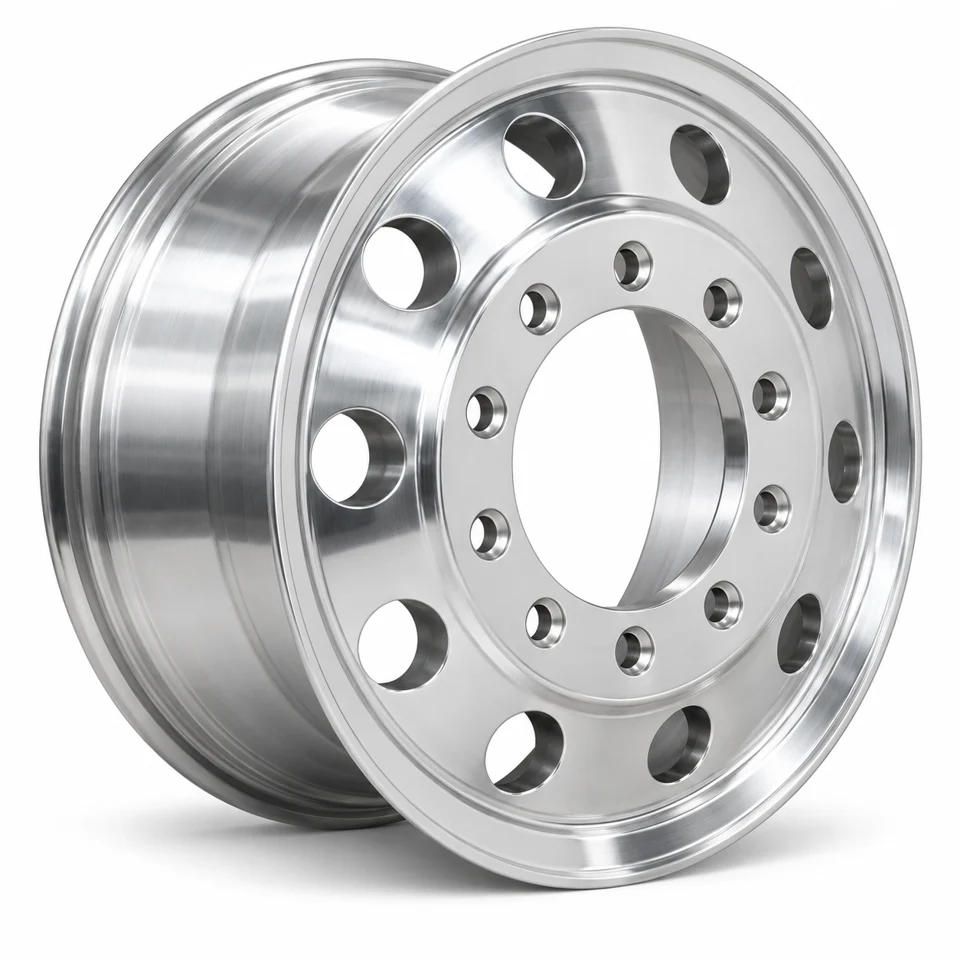

19.5-inch Medium-Duty Aluminum Wheel
Delivery trucks, service bodies and compatible medium-duty chassis.
| Wheel / rim size | 19.5 x 6 in (495.3 x 152.4 mm) |
|---|---|
| Bolt pattern | 10 x 8.858 in (10 x 225 mm) |
| Pilot bore | 6.69685 in (170.1 mm) |
| Reference offset | 5.35 in (135.89 mm) |
Selection configuration; sample, load rating and fitment approval are required before order.
Construction & Material
One-piece aluminum wheel with machined dual-mounting faces.
Options
Brushed or polished finish; model-specific disc thickness and valves.
Size options
19.5 x 6 in (495.3 x 152.4 mm); 19.5 x 6.75 in (495.3 x 171.45 mm)
Procurement Value
Common commercial fitments allow recurring dealer orders with controlled SKU counts.
Mounting & Selection
Hub/stud pilot, bolt circle, bore, disc thickness, outset/inset, axle position, required wheel load and inflation pressure.
Standards & Qualification
FMVSS 120 applicability and rim markings; SAE J267 test program as applicable. No certification is asserted.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
